Polygonal box

<< Click to Display Table of Contents >>

Navigation:  Folding box designer >

Polygonal box



box-fold-rectangle

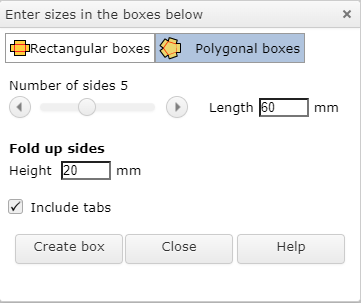

Click this button on the top toolbar to  a pop-up dialog box where you can design fold up boxes. There is a choice of rectangular and polygonal boxes.



hlp-polybox-designer

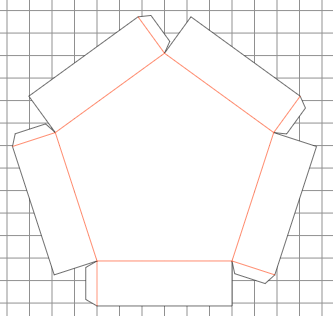

Set the number of sides and the length and height of the sides then click the 'Create box' button. The result is shown below.



hlp-box2
