Introduction

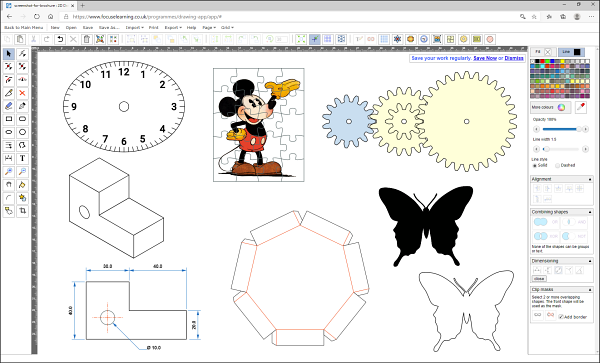

Welcome to the Focus 2D Designer Vector Graphics Designer Help Manual.

2d-designer-intro-screenshot

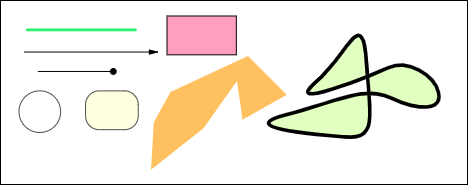

Everything you draw on the screen with this program (with the exception of text) is a mathematical representation of the a shape referred to as a "path". e.g. The simplest path is a straight line is made up of 2 points, the (x,y) coordinates of the start and the (x,y) coordinates of the end. A rectangle path would have 4 point, and so on. Paths can also be made up of curves. Some examples of paths are shown below.

hlp-intro

Paths can be open or closed. If the path is closed, the last point is joined to the first

Paths can have a fill colour and an outline colour. The thickness of the outline can also be set.

Select topics from the list on the left to find out more.
